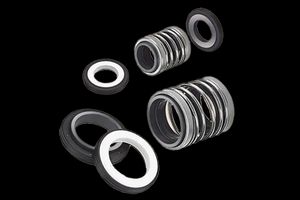

ED560
ED560系列专为潜水泵与污水泵设计，适用于含泥水、污水或固体颗粒的弱腐蚀性介质。
ED560 series is specially designed for submersible pumps and sewage pumps, suitable for muddy water, sewage or weakly corrosive fluids with solid grains.
产品介绍 / Description
ED560系列机械密封采用单弹簧、非平衡型结构，结构紧凑，专为空间受限的潜水泵和污水泵优化设计。密封面材料有多种组合可选，能够适应含固体颗粒的恶劣工况，确保长期稳定运行。
ED560 series mechanical seal adopts single spring, unbalanced design. Compact structure, specially optimized for submersible pumps and sewage pumps with limited space. Various combinations of seal face materials are available to adapt to harsh conditions containing solid particles, ensuring long-term stable operation.
技术规格 / Technical Specifications
技术参数 / Working Condition
| 密封腔压力 Pressure | ≤ 0.5 MPa |
|---|---|
| 线转速 Speed | ≤ 8 m/Sec |
| 密封腔温度 Temperature | -20°C ～ 100°C |
| 适用介质 Medium | 各类潜水泵与污水泵、泥水、污水或含固体颗粒的一般弱腐蚀性介质 Submersible pumps, sewage pumps, applied to the muddy water, sewage water or weakly corrosive fluids with solid grains |
材质 / Material
| 静环 Stationary Ring | 陶瓷 / 反应碳化硅 / 无压碳化硅 / 碳化钨 Ceramic / SIC / SSIC / TC |
|---|---|
| 动环 Rotary Ring | 石墨 / 反应碳化硅 / 无压碳化硅 / 碳化钨 Carbon / SIC / SSIC / TC |
| 辅助密封 Secondary Seal | 丁腈硅胶 / 乙丙橡胶 / 氟橡胶 NBR / EPDM / VITON |
| 弹簧及金属件 Spring & Metal Parts | SUS304 / SUS316L |
型号规格 / Dimensions
| 型号 | d | D1 | D2 | L | L1 | L2 |
|---|---|---|---|---|---|---|
| ED560-13 | 13 | 25 | 25 | 36 | 5 | 5 |
| ED560-14 | 14 | 30 | 30 | 36 | 5 | 5 |
| ED560-15 | 15 | 30 | 30 | 36 | 5 | 5 |
| ED560-16 | 16 | 30 | 30 | 36 | 5 | 5 |
| ED560-20 | 20 | 38 | 44 | 49 | 7 | 7 |
| ED560-25 | 25 | 44 | 50 | 51 | 7 | 7 |
| ED560-30 | 30 | 50 | 57 | 59 | 9 | 8 |
| ED560-35 | 35 | 58 | 64 | 61 | 9 | 9 |
| ED560-40 | 40 | 64 | 70 | 64.5 | 11 | 9 |
| ED560-45 | 45 | 66 | 70 | 65 | 10 | 9 |
| ED560-50 | 50 | 72 | 80 | 69.5 | 10 | 9 |
ED560系列专为潜水泵与污水泵设计，适用于含固体颗粒的介质。ED560 series is specially designed for submersible pumps and sewage pumps, suitable for media containing solid particles.
产品特性 / Features
- 单弹簧、非平衡型结构 Single spring, unbalanced design
- 结构紧凑，专为潜水泵优化 Compact structure, optimized for submersible pumps
- 传动销传动 Drive pin transmission
- 抗颗粒磨损能力强 Strong resistance to particle wear
